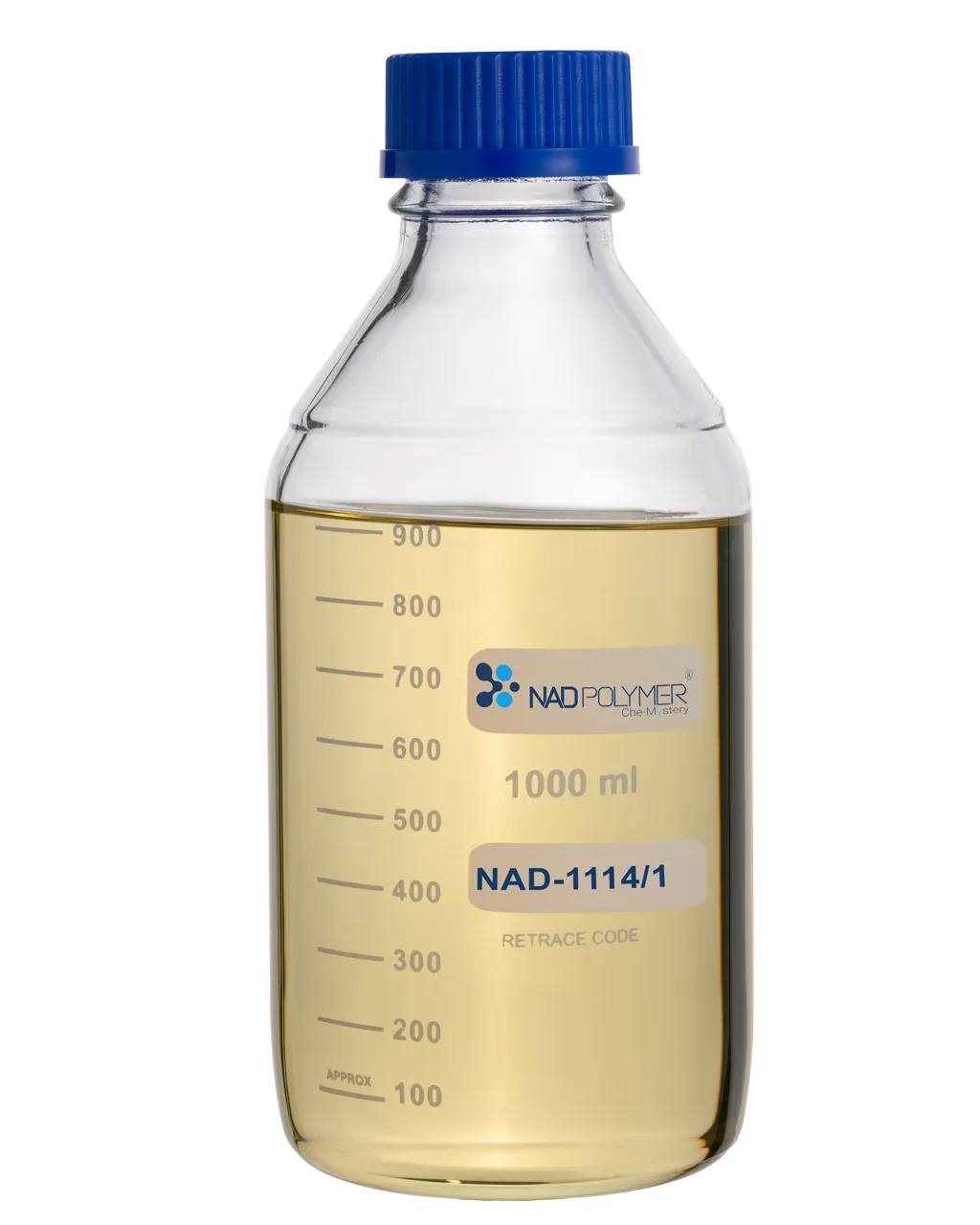

NAD-1114/1 Orthophthalic Resin

NAD-1114/1

NAD-1114/1 is an orthophthalic, medium viscosity unsaturated polyester resin. It is supplied as a solution dissolved in monomeric styrene.

Applications: NAD-1114/1 is designed for for application by spray, roller or brush, for contact moulding and general applications.

Resin Type

Orthophthalic

Gel Time (Min)

10-20

Acid Value (mgKOH/g)

20-30

Viscosity (CP)

350-463

Solid Content (%)

60-65

Tensile Strength (MPa)

65±5

Flexural Strength (MPa)

100-120

Barcol Hardness

40-45

HDT (°C)

55±5

Physical Appearance	A clear viscous liquid with a distinct solvent styrene odor.
Packaging Group	III
Solubility	Insoluble in water.
Vapor Density	Heavier than water.
Packaging	Metal Barrel / IBC / Polyethylen Tank
Explosion and Fire Hazard	Risk of ignition, explosion, and combustion products including carbon monoxide, carbon dioxide, styrene, and harsh smoke.
Inhalation	Vapors may lead to respiratory system irritation.
Skin Contact	May cause skin irritation and inflammation.
Eye Contact	May result in eye irritation, accompanied by redness, swelling, pain, and eye damage.
Ingestion	Harmful and causes gastrointestinal irritation, nausea, vomiting, and diarrhea. It can be fatal if it enters the respiratory tract.
Leakage	Disconnect all ignition sources and collect spilled material in an empty container for proper disposal.
Storage	Store in sealed, labeled drums at a temperature of 5 to 25 degrees Celsius, away from flames, sparks, direct sunlight, in a dry, cool, well-ventilated area.
